RV window seals protect your vehicle from water damage, mold, and costly repairs. Regular inspections can save you thousands in maintenance costs.
Here’s what you need to know:
- Why it matters: Damaged seals can lead to water leaks, wood rot, rust, and delamination, weakening your RV’s structure. Repairs for severe damage can cost $1,000–$5,000.
- Inspection frequency: Check seals at least twice a year (or quarterly for heavy use or harsh conditions).
- Signs of damage: Look for cracks, gaps, brittle sealant, water stains, or mold around windows. Drafts or fogging between glass layers are also red flags.
- DIY vs. professional help: Minor repairs cost $20–$50 per window, while professional resealing ranges from $150–$400. Call a pro for large-scale damage or structural issues.
- Tools needed: Ladder, flashlight, inspection mirror, non-marring probe, gloves, and cleaning supplies.
Maintaining your RV window seals is simple, affordable, and essential for preserving your investment. Catch problems early to avoid expensive repairs later.
RV Window Seals: Types and Common Problems
Types of RV Window Seals
RV windows rely on a combination of seals to keep water out and ensure a snug fit between the window frame and the RV's sidewall. One of the most common materials used is butyl tape, which is placed between the window frame and the RV wall. When the window is installed, the butyl tape compresses, creating a barrier that keeps moisture at bay. Many manufacturers prefer butyl tape because it stays flexible over time and adjusts well to the expansion and contraction of the RV's structure.
On the outer edge of the window frame, you'll often find a bead of sealant - typically a flexible caulk like Dicor or Sikaflex. This bead not only seals the joint between the frame and the wall but also covers screw heads, adding an extra layer of protection against the elements. For slider windows, rubber gaskets are used to seal the moving glass panel against the frame. Additionally, rubber glazing, the black trim around the window glass, gives the window a clean, finished look. Despite these measures, gaps between the glass and frame can still let water in, so a silicone bead behind the glazing is sometimes added to improve the seal.
What Causes Seal Damage
RV window seals endure a lot of wear and tear over time, especially from exposure to the elements. According to Keystone RV, sunlight, weather, and the rigors of travel are the primary culprits behind seal damage. UV rays are particularly harsh, breaking down rubber and sealant materials until they become brittle and prone to cracking. Temperature fluctuations also play a role, as the constant expansion and contraction of the RV's walls and frames can weaken seals and create gaps.
Aging and oxidation further degrade materials like rubber gaskets and butyl tape, causing them to dry out, shrink, or lose their flexibility. When combined with road vibrations and body flex during travel - especially in larger RVs like Class A motorhomes and fifth wheels - the stress on seal joints increases. Dirt, leaves, and other debris can clog weep holes and tracks on slider windows, preventing proper drainage and forcing water past the seals. Poor installation or previous repairs that didn’t properly clean surfaces or use the right materials can also lead to long-term sealing problems.
Warning Signs of Failing Seals
Spotting seal issues early can save you from costly repairs down the road. Cracks, splits, or gaps in the exterior sealant bead are telltale signs of trouble. You might also notice areas where the sealant has pulled away from the wall or frame - or has disappeared entirely. Inside your RV, yellow or brown water stains around the window frame often point to leaks, either current or past.
Another way to check is by gently pressing on the window frame from the inside. If it feels soft, there’s likely water damage beneath the surface. On windy or cold days, hold your hand near the closed window - drafts or temperature changes could indicate air leaks, which often go hand-in-hand with water infiltration. For dual-pane windows, condensation or fogging between the glass layers is a red flag that the glass seal has failed. Keystone RV advises inspecting all exterior seals at least twice a year and checking roof seals every three months to ensure seams around windows, doors, and storage compartments are intact.
Regular inspections and maintenance are your best defense against seal failure and the problems it can cause. The sooner you catch issues, the easier they are to address.
RV Window EXPERT Shares Top Inspection and Repair Secrets
How to Inspect RV Window Seals

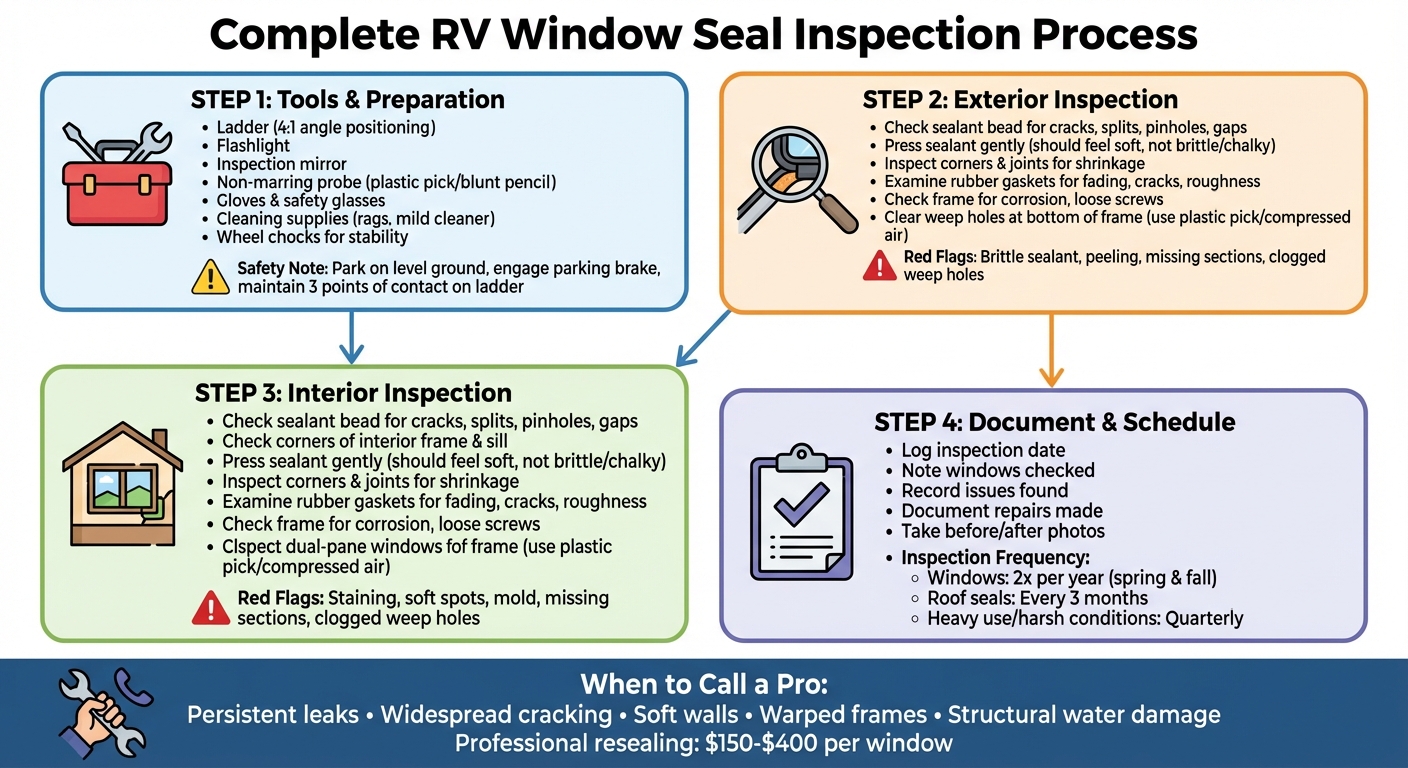

Complete RV Window Seal Inspection Process: Exterior and Interior Checklist
Tools and Preparation
Start by gathering the tools you'll need: a ladder, flashlight, inspection mirror, non-marring probe (like a plastic pick or a blunt pencil), gloves, safety glasses, and cleaning supplies (such as rags and a mild cleaner). A good sealant should feel slightly pliable, while a failing one will appear dry, hard, or brittle. Clean the area to remove dirt, making any cracks or gaps easier to spot.
Before inspecting, make sure your RV is on level ground. Engage the parking brake and use wheel chocks for added stability. Position your ladder at a safe 4:1 angle (one foot out for every four feet of height) and always maintain three points of contact while climbing. Avoid overreaching - move the ladder instead. For tall RVs like Class A motorhomes or fifth wheels, a work platform can help you safely access higher windows. Never step on curved panels or window ledges. If heights or stability are a concern, consider hiring a professional mobile RV service, such as The RV Smith in Colorado Springs, which can handle upper window inspections safely with proper equipment.
Once your tools are ready and safety measures are in place, you’re set to inspect the exterior seals.
Checking the Exterior
Walk around your RV and carefully examine each window frame where it meets the wall. Look for cracks, splits, pinholes, or gaps where the sealant bead has pulled away from the frame or wall. Pay extra attention to corners and joints, as these areas are more prone to shrinkage or missing sections. Use your finger or a blunt tool to gently press the sealant - it should feel soft and securely attached. If it feels brittle, chalky, or starts to peel away, repairs are needed right away.
Inspect the rubber gaskets and glazing around the glass for signs of wear, such as fading, chalking, roughness, or cracks - especially at corners or along sliding windows. Check the window frame itself for corrosion, loose screws, or damaged latches that could compromise the seal. At the bottom of each window frame, use a flashlight to locate the weep holes - these small slots let water drain out from the track. Clear any debris, like dirt, spider webs, insect nests, or excess sealant, using a plastic pick, cotton swab, or compressed air. Even if your seals are in good shape, clogged weep holes can lead to leaks inside.
Checking the Interior
Inside your RV, inspect the walls and trim around each window. Focus on the corners of the interior frame and sill, looking for yellow or brown water stains, mildew, mold, or any musty odors. Gently press along the wall and frame - softness in these areas often signals hidden water damage. After heavy rain or a wash, check for dampness along the frame and sill. If you notice staining, softness, or odors around a window, it’s a clear sign that water is seeping past the exterior seal and needs immediate repair.
sbb-itb-3c42112
Maintaining Your RV Window Seals
Cleaning and Small Repairs
Start by cleaning the seals with mild soap and water, ensuring they are completely dry before applying any sealant. For a more thorough cleaning, use acetone to remove any residue, followed by denatured alcohol to prep the surface. Make sure the weep holes are clear to maintain proper drainage.
Once the area is clean and dry, apply a thin bead of sealant along the damaged section. Use a gloved finger to smooth the sealant, which helps it adhere properly. Focus on repairing only the damaged areas to avoid creating new leak paths. If you notice gaps between the glass and the frame under the rubber glazing, fill the gap with 100% silicone, let it cure, and then reinstall the glazing trim.
If these fixes don’t resolve the problem, it’s time to consider professional help.
When to Call a Professional
Some window seal problems require expert attention. Persistent leaks, significant cracking, or softening of the walls around the frames are signs that a full window removal and reseal might be necessary. Issues like warped frames, incorrect clamp ring thickness, or water damage spreading into the walls are beyond the scope of most DIY repairs.
The RV Smith in Colorado Springs specializes in handling these complex problems. Their team of skilled technicians has the tools and expertise to tackle window leaks, frame issues, and structural water damage. Plus, their mobile service can come to you anywhere in El Paso County, saving you the hassle of towing your RV to a repair shop.
Tracking Your Inspections
Keeping a detailed record of your inspections and repairs can make maintenance easier and more effective. Log every inspection with the date, the windows you checked, any issues you found, and the repairs you made. If certain windows have recurring problems, like repeated leaks, documenting these patterns can help identify location-specific issues, such as weather exposure. Adding photos of trouble spots before and after repairs can also provide a visual history of your RV’s condition over time.
Aim to inspect your RV windows thoroughly at least twice a year - spring and fall are ideal times. For roof seals, check them every three months. If you frequently use your RV or travel in extreme weather, increase the frequency of your inspections. Regular maintenance can save you from bigger headaches down the road.
Conclusion
Taking the time to inspect your RV's window seals regularly is a smart way to protect your investment. The combination of sun exposure, weather conditions, and constant travel can wear down sealants faster than you might expect. Spotting small cracks or gaps early means you can address them with a quick, affordable fix using the right RV sealant - saving you from more expensive repairs down the road.
Aim to check your window seals at least twice a year, ideally in the spring and fall. Keep a log of each inspection, noting the date, any issues you find, and repairs you make. These records will help you decide whether you can handle minor fixes yourself or need to bring in a professional.
For small areas of damage, clean and reseal immediately. However, if you notice widespread cracking, ongoing leaks, or signs of more serious problems like soft walls or warped frames, it's time to call in an expert. The RV Smith in Colorado Springs is equipped to handle these challenges, offering services like detailed leak diagnostics, resealing multiple windows, and repairing any interior damage. Whether you visit their 10,000-square-foot facility or take advantage of their mobile services in El Paso County, they’ve got you covered.
Key Takeaways for RV Window Seal Inspection and Maintenance
How can I tell if my RV window seals are damaged or need repair?
Damaged RV window seals often reveal themselves through cracks, visible wear, or gaps around the edges. You might spot other signs too, like water leaks, fogging between glass panes, or trouble opening and closing the windows. If you notice any of these issues, it’s crucial to address them quickly. Getting your seals inspected and repaired in a timely manner can prevent more extensive damage to your RV. Routine maintenance is key to catching these problems early and ensuring your windows stay in great shape.
What are the best materials for fixing RV window seals?
The top choices for repairing RV window seals are rubber, silicone, and EPDM (ethylene propylene diene monomer). These materials stand out for their flexibility, durability, and ability to handle tough weather conditions, making them perfect for preventing leaks and wear.
Rubber is favored for its stretchiness and ability to handle temperature changes without cracking. Silicone is excellent if you're looking for long-lasting waterproofing. For heavy-duty needs, EPDM is a standout option - it resists UV rays and holds up well against extreme weather. By regularly checking and maintaining your RV window seals with these materials, you can avoid expensive repairs and keep your RV in great shape.
What’s the best way to inspect and maintain RV window seals?
To maintain your RV window seals in great shape, make it a habit to inspect them regularly for cracks, wear, or any signs of leaks. Clean the seals using a solution of mild soap and water to remove dirt and debris. If you find any damage, apply a silicone-based sealant or an RV-specific sealant to fix the issue and prevent it from worsening.
Keeping the seals dry and free from debris is key to extending their lifespan. For severe wear or persistent leaks, it’s a smart move to consult a professional. This can help you avoid expensive repairs later on.
